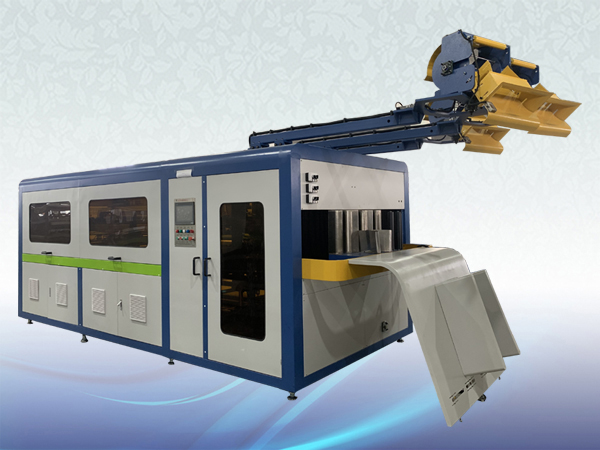

QL-LT-03B Pocket Spring Net Production Line

QL-LT-03B Pocket Spring Net Production Line

Detail：

Product Characteristic:

1. Adapt to cylindrical and barrel shape springs.

2. The heat-treatment device can adapt to different spring height, easy for adjustment.

3. The non-woven feeder system,save material and labor.

4. Multiple fault detecting device, effectively reduced the wastage.

5. Special protective device.

6. Each pocket spring coiling machine use two spring coiling heads, which can make zone pocket spring net.

Remark: Can use 1pc, 2pcs or 3pcs pocket spring coiling machines according to different requirements.

Technical Parameters:

Non-woven supply	60~100g/m2
Non-woven width	340~690mm
Steel wire dia	1.6~2.2mm
Pocket spring height	120~250mm
Spring central dia	50~75mm
Power supply	50kw/hour
Total power	120kw
Speed	2.5~5min/net
Air consumption	0.5m³/min, 0.8MPa
Gross weight	15000kgs
Space dimension	21000*8000mm
