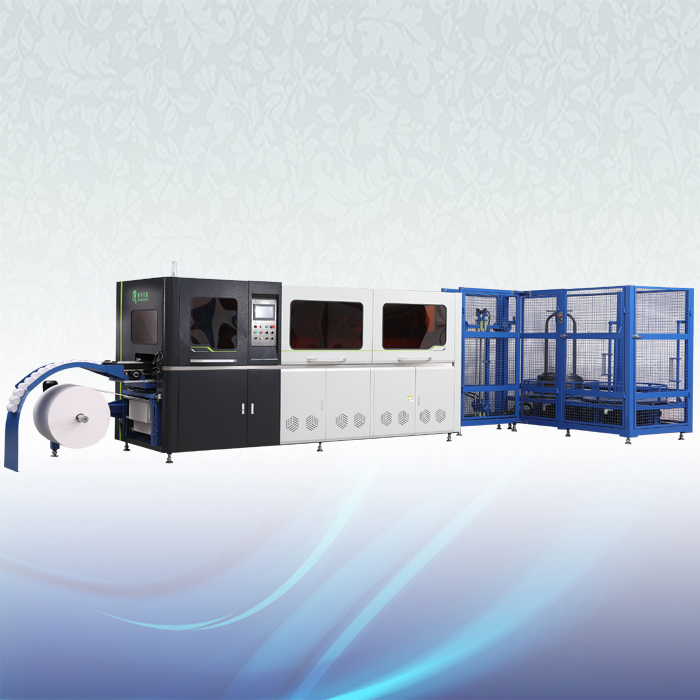

GDZ9-180DW High Speed Pocket Spring Coiling Machine

Product Name：GDZ9-180DW High Speed Pocket Spring Machine with Double Wire



Product Characteristic:
1. Adapt to cylindrical and barrel shape springs.
2. The heat-treatment device can adapt to different spring height, easy for adjustment.
3. The non-woven feeder system, save material and labor.
4. Multiple fault detecting device, effectively reduced the wastage.
5. Use one full-automatic coiling head, can make ZONE MATTRESS(two different wires).
6. Special protective device.

Technical Parameters:

Efficiency(about):

180pcs/min

Non-Woven Supply:

 60-100g/m2

Pocket Spring Height:

 80-250mm(can be adjusted)

Wire Dia.:

 Φ1.6-2.4mm

Spring Core Dia.:

 Φ50-75mm

Non-Woven Width:

 340-700mm

Power Supply:

 28KW

Air Requirement:

 0.02m3/min 0.8MPa

Gross Weight:

 4500KG

Overall Dimension:

 5550X2500X1950mm
