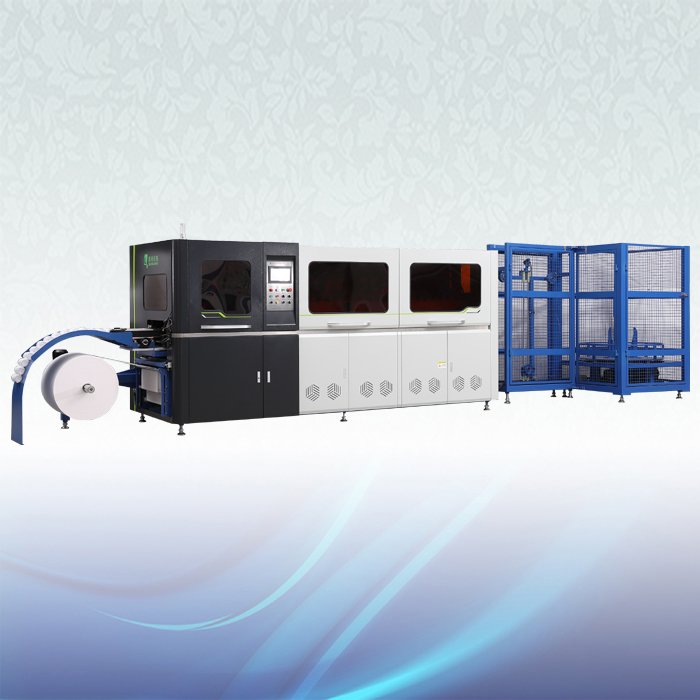

GDZ9-130 CNC High Speed Pocket Spring Machine
PRODUCTS



Product Name:GDZ9-130 CNC High Speed Pocket Spring Machine

Detail:
Product Characteristic:
1. Adapt to cylindrical and barrel shape springs.
2. The heat-treatment device can adapt to different spring height, easy for adjustment.
3. The non-woven feeder system, save material and labor.
4. Multiple fault detecting device, effectively reduced the wastage.
5. Use full-automatic coiling head, faster than normal coiling head.
6.Special protective device.

Technical Parameters:

Efficiency(about):

130pcs/min

Non-Woven Supply:

 60-100g/m2

Pocket Spring Height:

 120-250mm

Wire Dia.:

 Φ1.6-2.3mm

Spring Core Dia.:

 Φ55-75mm

Non-Woven Width:

 360-680mm

Power Supply:

 15KW

Air Requirement:

 0.02m3/min 0.8MPa

Gross Weight:

 4000KG

Overall Dimension:

5500X1500X1950mm
