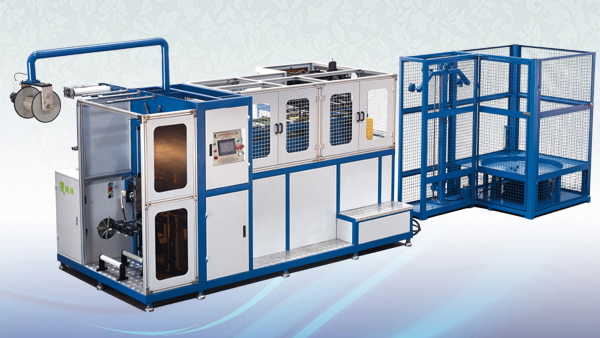

GDZ8-100 Pocket Spring Coiling Machine
|
Product Name：GDZ8-100 High Speed Pocket Spring Machine
|
|
Product Characteristic:
1. Adapt to cylindrical and barrel shape springs.
2. The heat-treatment device can adapt to different spring height, easy for adjustment.
3. The non-woven feeder system, save material and labor.
4. Multiple fault detecting device, effectively reduced the wastage.
5. Use full-automatic or Semi-auto coiling head.
6. Special protective device.
Technical Parameters:
|
Efficiency(about):
|
100pcs/min
|
|
Non-Woven Supply:
|
60-100g/m2
|
|
Pocket Spring Height:
|
80-250mm
|
|
Wire Dia.:
|
Φ1.6-2.3mm
|
|
Spring Core Dia.:
|
Φ55-72mm
|
|
Non-Woven Width:
|
360-680mm
|
|
Power Supply:
|
15KW
|
|
Air Requirement:
|
0.02m3/min 0.8MPa
|
|
Gross Weight:
|
3500KG
|
|
Overall Dimension:
|
3700X1800X2100mm
|
|
|
